The QuickArray-MEAT system uses fluorescent PCR array chip technology to simultaneously identify 15 common animal species in a single test. Works for both raw and cooked meat, with results in as fast as 35 minutes on-site. No cold chain required, portable and vehicle-mountable. Widely used for market regulation, customs inspection, and enterprise raw material self-testing to prevent low-cost adulteration and Halal compliance violations.
Standard lateral flow strips cannot detect cooked meat — heat denaturation destroys antibody activity, causing false negatives. Our QuickArray-MEAT uses fluorescent PCR targeting DNA, unaffected by heating. Beef jerky, spicy beef, braised meats, dried meat — all accurately identified.
Positive/negative concordance rate > 90%.
Only vortex + nucleic acid release — one-step sample prep, no complex instruments needed.
Simultaneously detect 8–15 common animal species indicators in one test.
Sample prep + detection completed within 40 minutes — clear, unambiguous results.
No cold chain; 2.7 kg analyzer is vehicle-portable, or choose the test box for field operations.
Target species can be customized to regional market needs. Also applicable to dairy and plant GMO source testing.
Regulatory testing of meat products in circulation.
On-site rapid testing for evidence collection.
On-site screening of imported meat to intercept adulteration.
Incoming raw material inspection, cross-contamination prevention.
Rapid pork component detection to support certification.
Supplier spot-checks to protect brand reputation.
Add sample to lysis buffer, mix — no equipment needed
Transfer lysate to the array chip
Place in instrument, auto amplification & signal collection
Software auto-outputs species results; print/export
| Spec | Analyzer | Test Box |
|---|---|---|
| Principle | Real-time fluorescent PCR | Real-time fluorescent PCR |
| Fluorescence | 2-color (FAM / ROX) | 2-color (FAM / ROX) |
| Chambers | 16 | 16 |
| Targets | 8–16 selectable (up to 32) | 8–16 selectable (up to 32) |
| Sample prep | Chemical lysis, 3 min, room temp | Chemical lysis, 3 min, room temp |
| Temp accuracy | ±0.1 °C | ±0.1 °C |
| Ramp rate | 6 °C/s | 6 °C/s |
| Dimensions | 210×210×110 mm | 530×440×220 mm |
| Weight | 2.7 kg | 7.2 kg |
| Reagent storage | Room temp > 6 months | Room temp > 6 months |
| Power | DC 24 V | DC 24 V |
| Battery | Optional external | Built-in (5 chips) |
On-site demo unit trial and technical demonstration.
Technical training and validation support.
Custom species panels for your regional market.
Full unit warranty with professional after-sales response.
| # | Item | Description |
|---|---|---|

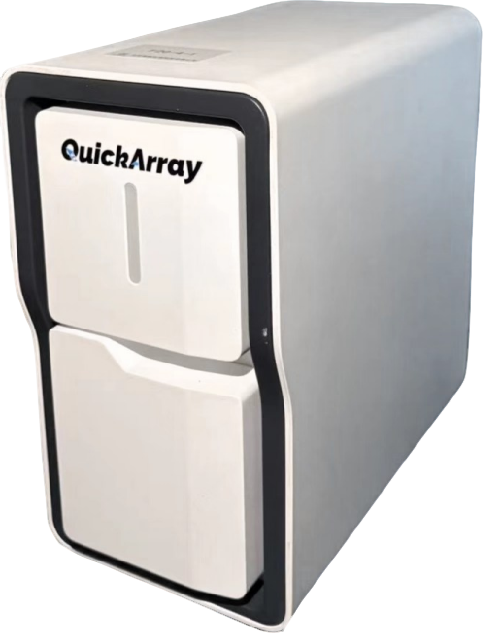

| 1 | Benchtop Analyzer | 210×210×110 mm / 2.7 kg, external power |

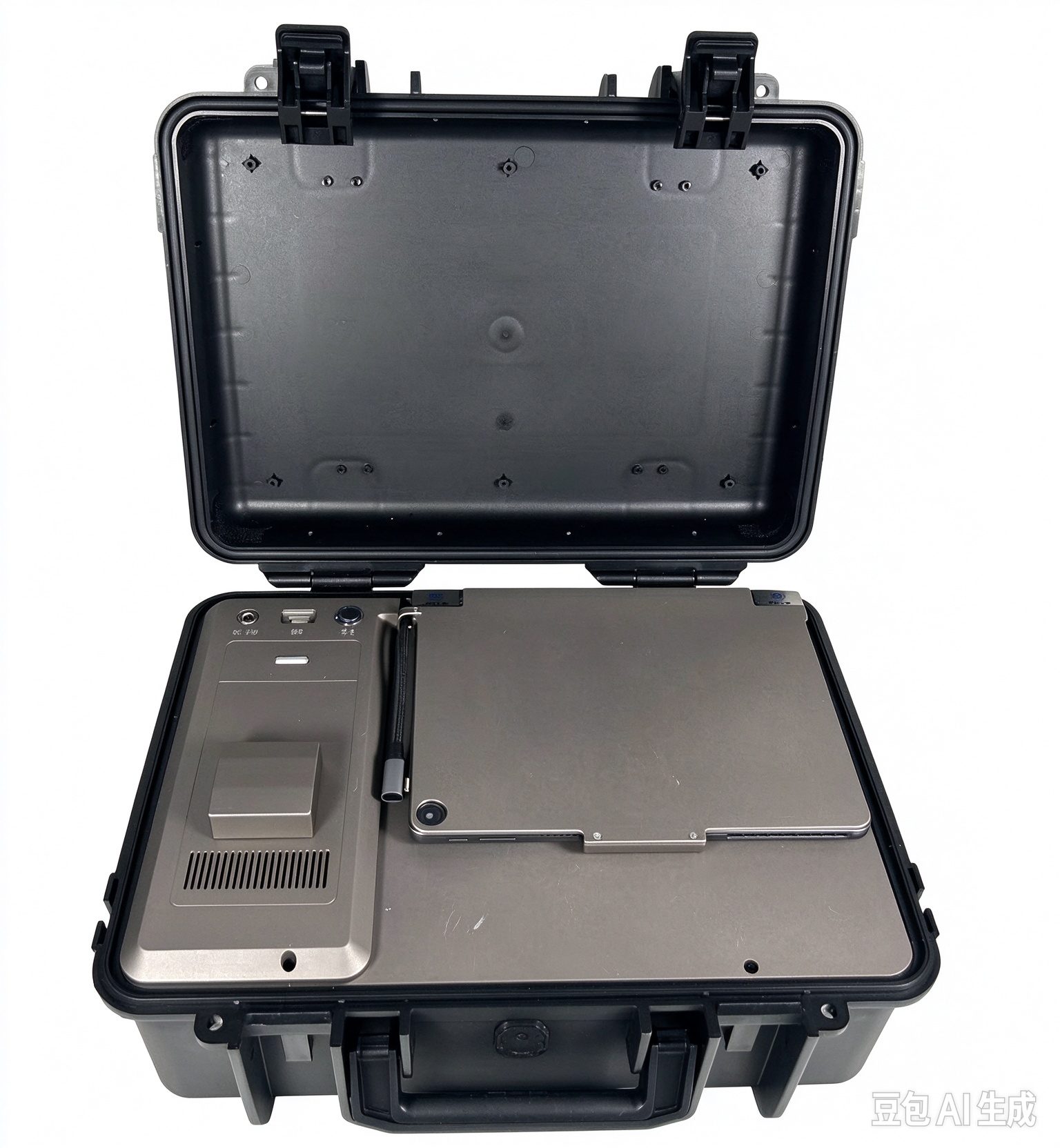

| 2 | Portable Test Box | Built-in Li-battery, supports 5 chip tests |
| 3 | Sample Prep Reagents | Chemical lysis, 3-min rapid nucleic acid extraction |

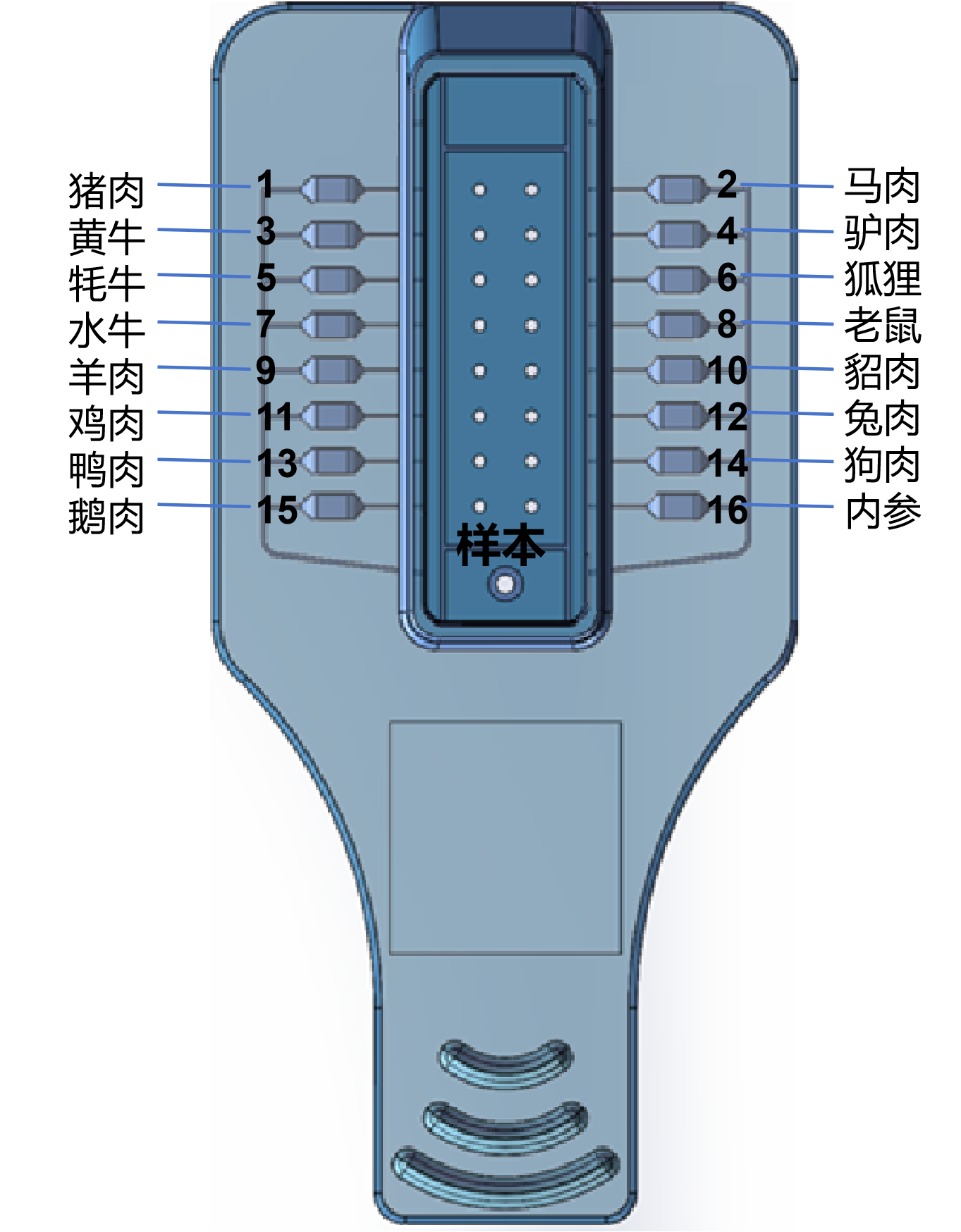

| 4 | Test Chips | 16-chamber array chip, 6-month room-temp shelf life |
| 5 | Custom Species Panels | Species combinations tailored to regional testing needs |
* Contact sales for pricing, standard configuration, and delivery timeline.
Yes. Real-time fluorescent PCR is the gold-standard method for species identification — works for both raw and cooked meat.
8–16 species per test, expandable to 32. Target panels can be customized for regional markets.
No. Chip chambers are pre-loaded with dried target reagents — 6-month room-temp shelf life.
Free trials are not available. See our Service & Resources page for details.
