Based on real-time fluorescent PCR, with 26 reaction chambers + 2-color fluorescence channels enabling 52-plex nucleic acid detection.
Each chamber is pre-loaded with target-specific nucleic acid detection reagents. Simply load the sample template through the sample inlet, let it flow into each chamber to reconstitute the reagents, seal the cover, place into the instrument for PCR amplification and real-time detection.
Up to 52-plex parallel detection per chip — high information density.
Results in 45 minutes — meets on-site turnaround requirements.
Reagents are pre-dried inside chips — no cold-chain logistics required.
Reagents pre-loaded; simply inject nucleic acid sample and run.
Fluorescent PCR is the recognized gold standard for pathogen & species identification.
Compact and lightweight — bring it to the field for real-time testing.
For lower multiplexity, run multiple samples per chip; targets are customizable.
Easy to develop, easy to use, no cold chain, injection-molded chip production.

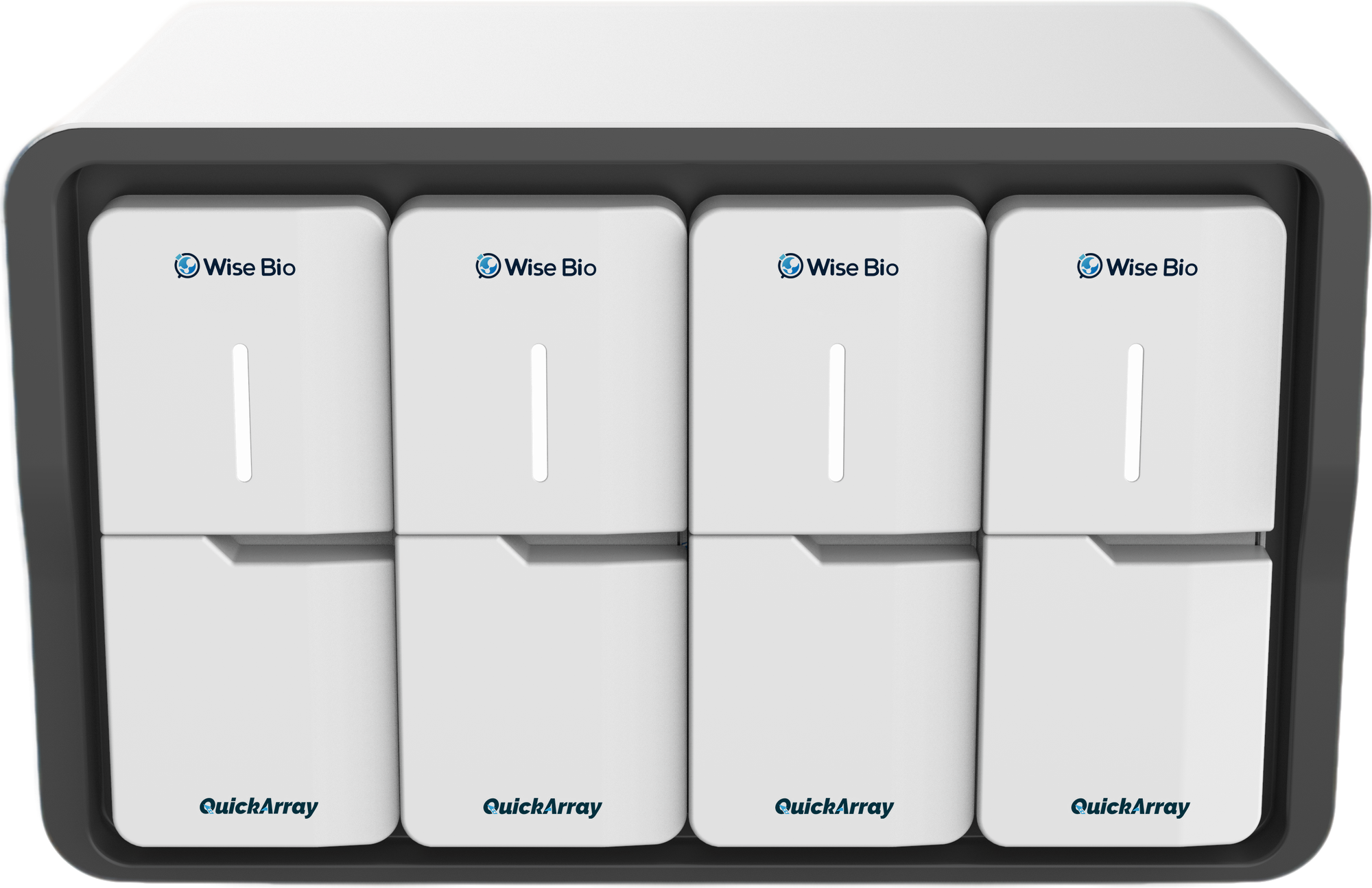

Multi-pathogen analyzer — single / dual / quad channel models
Respiratory infections, gastrointestinal infections, bloodstream infections, encephalitis, HPV genotyping — multi-pathogen differential diagnosis for the same symptoms.
Thalassemia genetic screening, deafness susceptibility genes, and more.
Leukemia fusion gene subtyping — providing evidence for precision treatment.
Meat adulteration detection, species authentication, GMO testing, animal & plant disease detection.
Instrument installation and operator training.
Custom multi-pathogen chip panels for your specific scenarios.
Platform demonstration and validation support.
Full unit warranty with professional after-sales response.
Up to 52-plex per chip (dual-side heating lab model); portable model and test box up to 32-plex. For lower multiplexity, multiple samples can be run per chip.
Yes. For lower multiplexity, multiple samples per chip are supported; targets can be flexibly customized to your needs.
No. Reagents are pre-dried inside chips — room-temperature storage and transport, long shelf life, no cold chain required.
Free trials are not available. For detailed FAQ and demo videos, visit our Service & Resources page.
